1, Name: turret busbar processing machine
Model: ZTMX-303D, ZTMX-503D, ZTMX-303K
2, Picture and our power(certificate)
DGWMX series
busbar machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
3, Video link:
4, Instruction:busbar machine is also called
busbar processing machine, busbar shearing punching bending machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
ZTMX busbar machine including: ZTMX-303D, ZTMX-503D and ZTMX-303K
This kind machine is mainly used for different types of processing of copper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high production efficiency. So it is an ideal processing equipment for electrical appliance manufacture of high and low voltage.

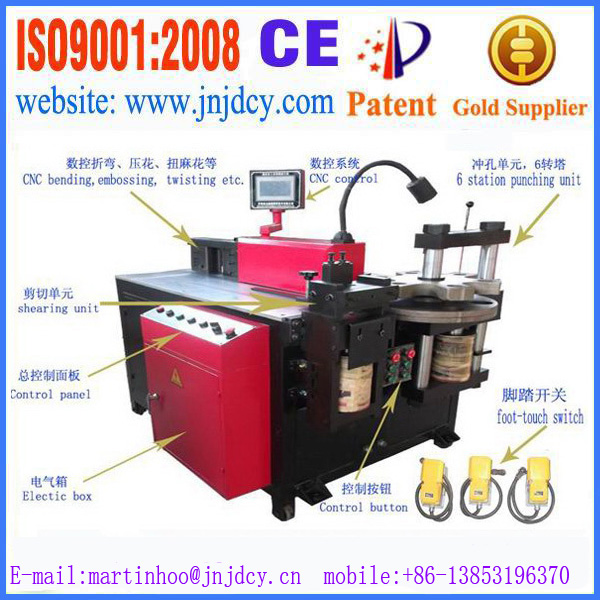

5, Main Characteristics:1, This machine has 3 units for punching, shearing and bending and through changing die, it can do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2, It is convenient for using and higher production efficiency than traditional busbar processing equipments.
3, You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.

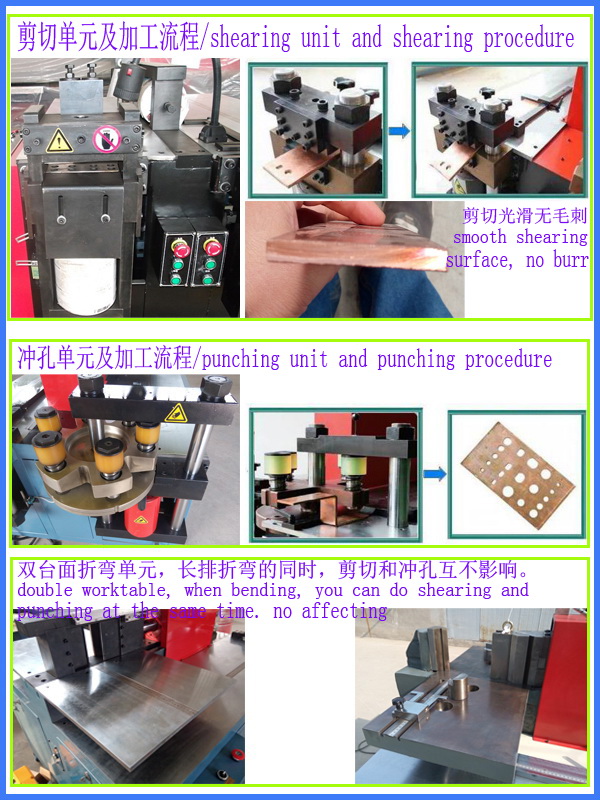

4, We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother

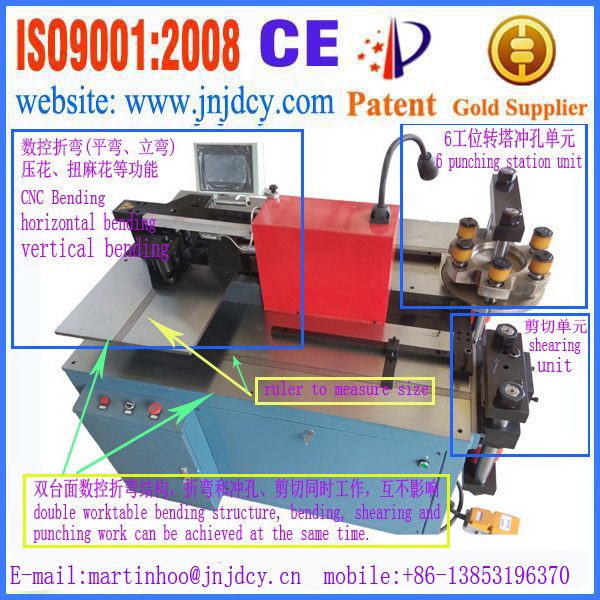

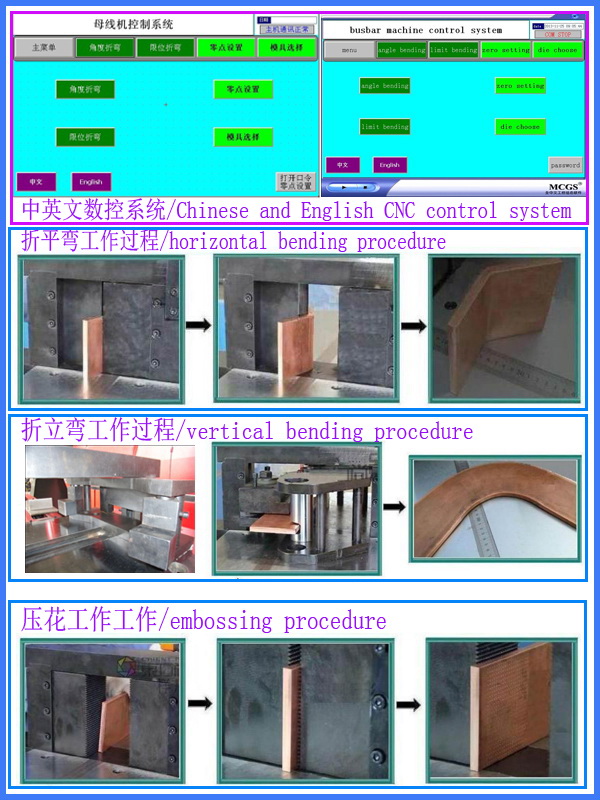

5, Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
6, There are 4 trundles. So the machine can be moved conveniently by adjusting them.
7, It can be installed 6 punching mold once time in punching turret unit. Save time of changing punching die, improve working efficiency.
6, Technical parameters: | | | ZTMX-303D | ZTMX-503D | ZTMX-303K |
| Punching | Max power(KN) | 300 | 500 | 300 |
Punching
Diameter(mm) | ф4.3～ф25 | ф4.3～ф34 | ф4.3～ф25 |
| Max thickness(mm) | 12 | 16 | 12 |
| Max width(mm) | 150 | 250 | 150 |
| Shearing | Max thickness(mm) | 12 | 16 | 12 |
| Max width(mm) | 150 | 250 | 150 |
| Bending | Max power(KN) | 300 | 500 | 300 |
| Max width(mm) | 150 | 250 | 150 |
| Vertical Bending | Max width (mm) | 100 (10mm
Thick copper) | 120 (12mm
Thick copper) | 120(12mm
thick copper) |
| Embossing | | √ | √ | √ |
| Pressing Cable Joint | | √ | √ | √ |
| Twisting | | √ | √ | √ |
| Outline Dimensions | | 1300×1000×900 | 1500×1345×900 | 1300×1000×900 |
Power of Main
Motor (KW) | | 3×4 | 3×5.5 | 3×4 |
7, Accessories list or configuration :| No. | Name | Unit | quantity |
| 1 | Busbar machine | Set | 1 |
| 2 | Operation instruction | book | 1 |
| 3 | key | Set | 1 |

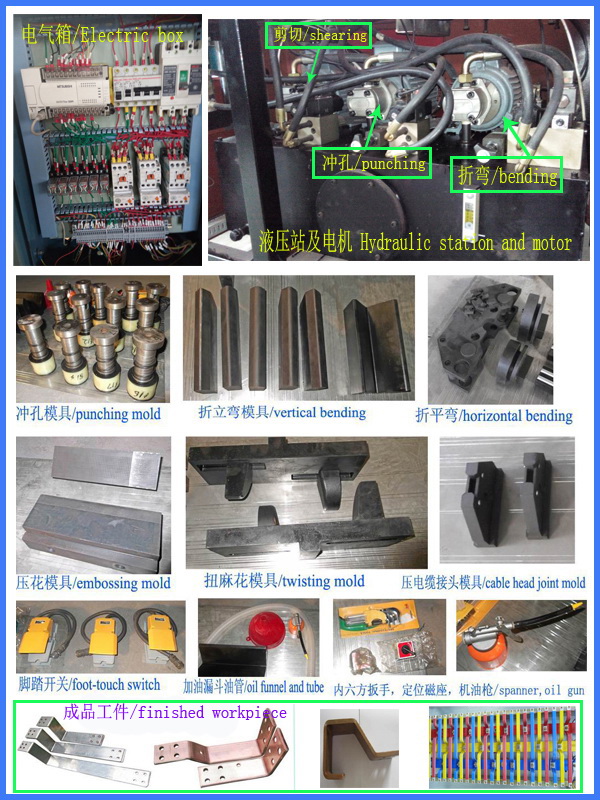

| 4 | Punching mould Ф9, Ф11, Ф13, Ф17,Ф19, Ф21 | Set | 1 of each |
| 5 | Cutting mould(installed in machine) | Set | 1 |
| 6 | Horizontal bending mould（R5、R10） | Set | 1 |
| 7 | Vertical bending mould | Set | 1 |
| 8 | Foot-touch switch | PC | 3 |
| 9 | inner hexagon spanner | Set | 1 |
| 10 | spanner 27-30 | PC | 1 |
| 11 | Sealing ring | Wrap | 1 |
| 12 | oil filler | PC | 1 |
| 13 | oil filler pipe | PC | 1 |
| 14 | oil gun | PC | 1 |
| 15 | Location magnetism seat | PC | 2 |
| 16 | Nuts and bolts of bottom | PC | 4 |
| 17 | Location needle | PC | 1 |
