 Details

1, Name: CNC busbar processing line
  Model: FMCMX-303K, FMCMX-303C (our patent: No. ZL 2009 2 0020857.4)

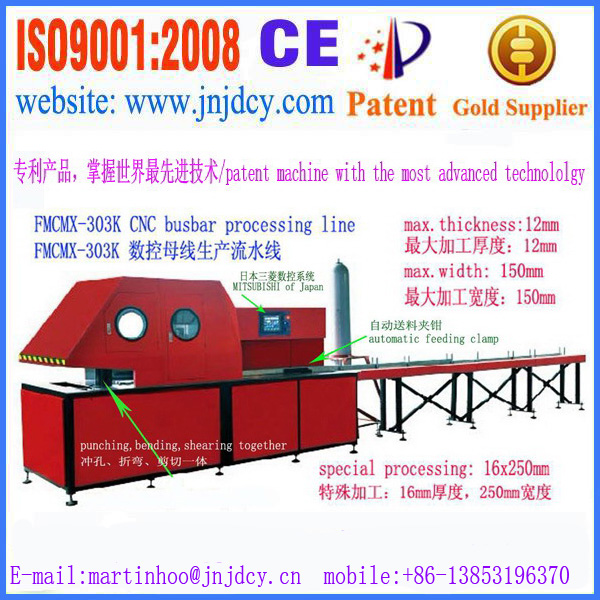

2, Picture and our power:


FMCMX-303K busbar machine has passed ISO9001-2008, CE, patent certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website. We are the only one manufacture in busbar whole processing line.

3, Video link:
FMCMX-303K:
FMCMX-303C:

4, Instruction:
busbar machine is also called busbar processing machine, busbar punching bending shearing machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
CNC busbar processing center including two types FMCMX-303K and FMCMX-303C
This machine is devised by our engineer, only our factory can manufacture this machine in the world at present.

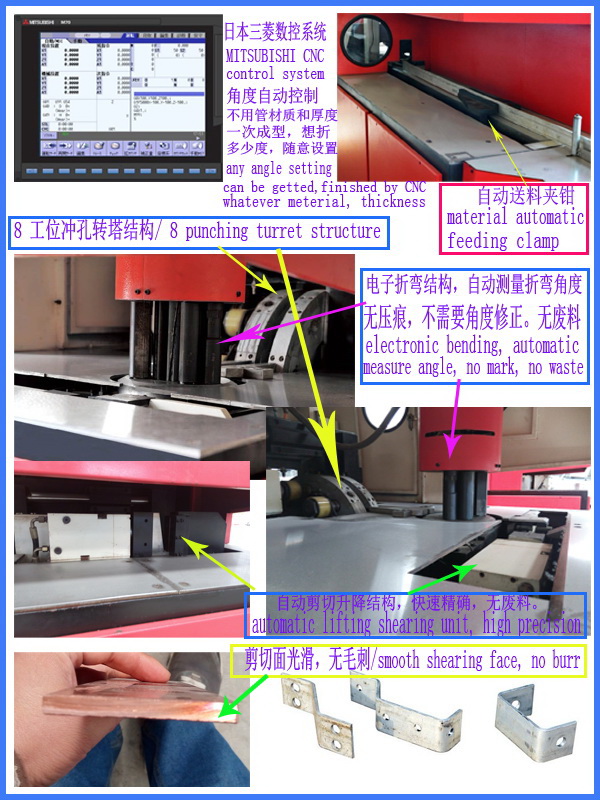

5, Main Characteristics:
1) This processing center is a special equipment used for copper or aluminum busbar processing in electric power, equipments for high and low voltage and busbar groove industry with characteristics of high efficiency, low consume, labor-saving, environmental, high accuracy, attractive in appearance, easy to operate and so on.
2) This center has original processing principle and method, which is completely different from the former conception of processing. It is adopted 4-axis control and 1-time clamping method. Work of punching, bending, shearing and so on can be finished without the aid of operator from rough material to finished work pieces, only clamping the banded pre-processing busbar to its right position for one time and matching with related programming operation. Work pieces are automatically finished and the waste is recycled completely.
3) This center adopts double pneumatic clamps, which achieves interactive accomplishment of automatic feeding without limiting the length of busbar with the location accuracy of ±0.1mm.
4) Punching unit takes 8-die turret punching method. Choosing die, locating and accurately controlling pitch of holes are finished automatically.
5) Adopting special bidirectional bending system to guarantee left-right bending finished one time. The precision of bending angle is controlled in ±0.5°. Shearing unit takes the method of punching. Work pieces surface is neat and smooth.

6, technical parameters:

Punching	Max power (KN)	300
	Punching Diameter (mm)	ф4.3～ф25 (copper and aluminum)
	Max thickness (mm)	12   (copper and aluminum)
	Max width (mm)	150  (copper and aluminum)
Shearing	Max power (KN)	300
	Max thickness (mm)	12   (copper and aluminum)
	Max width (mm)	150  (copper and aluminum)
Bending	Max thickness (mm)	12   (copper and aluminum)
	Max width (mm)	150  (copper and aluminum)
Total power of Electric motor		12KW
Outline Dimensions(mm)		8500L×1240W×1750H
Weight	T	4.2


7, Processing principle instruction

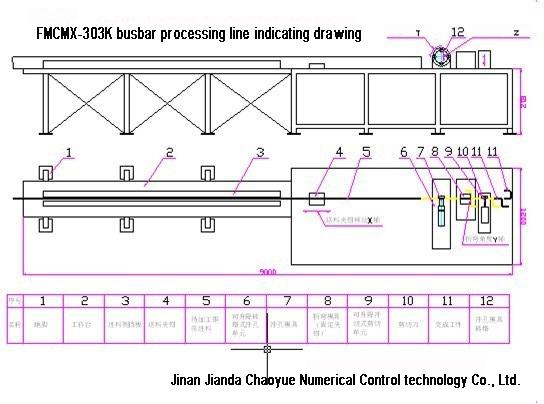

Accessory drawing1 is this machine processing principle. The machine will work after putting the processing copper material on the worktable and locating using feeding clamp 4 fixed tightly. When the clamp feeds copper to punching unit, it can control holes distance of X axis and punching unit can control holes distance of Z axis. Turret 12 T axis choose model to start punching work. The feeding clamp will continue feeding cooper to bending position after finishing punching. Then fixing the clamp 8 tightly, the bending procedure will start after setting of angle and choice of right or left direction. (at the time, shearing unit 9 will be in decline state for supplying bending space. ) After bending, clamp 4 will feed copper to cutting position. The unit 9 will rise to original position, cutting knife 10 cuts it, then the work piece is finished.
When the length of processing work piece is more than feeding clamp route, clamp 4 and 8 will finish the work together. Clamp 4 feed materials to clamp 8 for fixing, then clamp 4 will return with no-load and works again. this method can used for processing of 600mm length work pieces.

8, Difference between FMCMX-303K with other busbar processing line in the world:

performance	FMCMX-303K CNC processing center	Popular CNC processing center in the world
Unit	Punching, bending, shearing	Punching, shearing
Automatic feeding	Copper board feeding is vertical,  which is not scratched easily	Copper board feeding is horizontal, which is scratched easily
Quantity of CNC axis	4 axes	2 axes


Our company also can make automatic processing center with only one set punching and shearing, but it is vertical feeding method and turret model unit.

9, Drawing of FMCMX-303K processing procedure  10, Accessories list or configuration :

No.	Name	Unit	quantity
1	Busbar machine	Set	1
2	Operation instruction	book	1
3	key	Set	1
4	Punching die with single hole:   Ф7, Ф9, Ф11, Ф13, Ф15, Ф17, Ф19, Ф21	Set	1 of each
5	Double holes die pedestal	Set	1
6	Cutting die	Set	1
7	Horizontal bending convex die	set	1
8	Vertical bending convex die	ser	1
9	Horizontal bending electric concave die	set	1
10	vertical bending electric concave die	set	1
11	Foot-touch switch	PC	2
12	inner hexagon spanner	Set	1
13	spanner 27-30	PC	1
14	Sealing ring	Wrap	1
15	oil filler	PC	1
16	oil filler pipe	PC	1
17	oil gun	PC	1
18	Nuts and bolts of bottom	PC	4


11, Price and payment term:
11-1 price:
Contact with me forwardly, there is discount price for you!

11-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

12, Delivery time:
30 days after received the 30% deposit by T/T.
