 Current position: English Web > CNC press brake

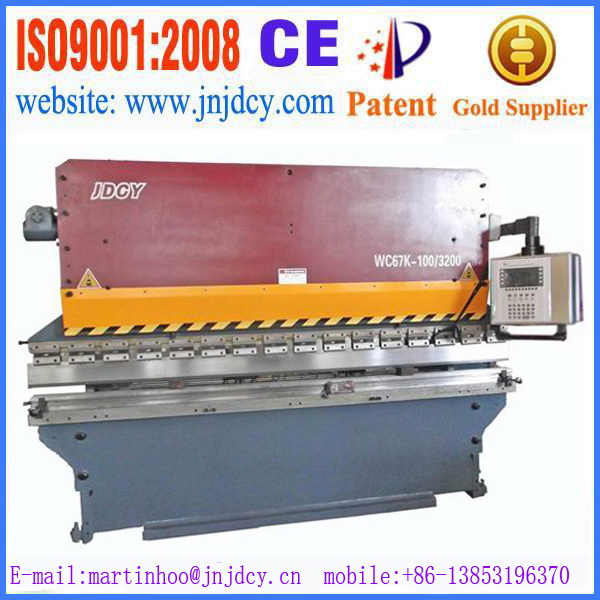

WC67K CNC press brake

 Details

1, Name: WC67K CNC Press Brake

2,Picture and our power(certificate)


Our WC67K CNC press brake has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.

3, Video link:


4, Instruction:

CNC press brake is also called CNC bending machine, metal steel bending machine. Which is mainly used for processing steel sheet bending.

5, Main Characteristics:

1), it is complete steel welded structure with high strength and good rigidity.Machine frame is processed by annealing treatment.
2), Hydraulic top-transmission method can assure the machine stable and reliable.
3), Mechanical forced synchronization makes it with strong capacity of unbalancing loading resistance.
4), Precision of bending is high.
5), Angle of bending and size of back gauge is controlled by CNC system. We adopt CNC programming method, so it is operated easily and price is cheap.
6), Back gauge adopts ball screw and high precision linear guide.

6, Technical Parameters:
Model Nominal
pressure
(KN)
Worktable
 length
(mm)
Poles
Distance
(mm)
Throat
depth
(mm)
Slider
travel
(mm)
Open
height
(mm)
Main
motor
(KW)
Machine
weight
(kg)
Machine size
L×W×H
(mm)
WC67K-30T/16003001600128020070220318001600x800x1620
WC67K-30T/20003002000160020080240330002000x780x1700
WC67K-40T/220040022001850250100320442002260x1200x1900
WC67K-40T/250040025001850250100320436002560x1200x1900
WC67K-50T/250050025001850250100320438002560x1200x1900
WC67K-63T/2500630250019002501203205.549002560x1340x2200
WC67K-63T/3200630320025602501203205.552003260x1340x2200
WC67K-80T/2500800250019903201203207.562002560x1400x2300
WC67K-80T/3200800320025603201203507.565003260x1400x2300
WC67K-80T/4000800400030003201203507.568004060x1400x2300
WC67K-100T/25001000250020203201303707.580002560x1480x2450
WC67K-100T/32001000320026003201303707.585003260x1480x2450
WC67K-100T/40001000400030003201303707.590004060x1480x2450
WC67K-125T/32001250320025003201303701198003260x1520x2550
WC67K-125T/4000125040003000320130370111050004060x1520x2550
WC67K-160T/320016003200260032015046011138003260x1600x2800
WC67K-160T/400016004000300032015046011144004060x1600x2800
WC67K-160T/500016005000400032015046011148005060x1700x2900
WC67K-160T/600016006000500032015046011156006060x1700x3000
WC67K-200T/320020003200250040020046015165003260x1600x2800
WC67K-200T/400020004000300040020046015178004060x1600x2800
WC67K-200T/500020005000400040020046015196005060x1700x2900
WC67K-200T/600020006000500040020046015218006060x1700x3000
WC67K-250T/320025003200250040020059018.5188003260x1600x2800
WC67K-250T/400025004000300040020059018.5195004060x1700x3000
WC67K-250T/500025005000400040020059018.5218005060x1700x3100
WC67K-250T/600025006000500040020059018.5227006060x1800x3200
WC67K-300T/320030003200250040025059022220003260x1900x3000
WC67K-300T/400030004000300040025059022240004060x2000x3000
WC67K-300T/500030005000400040025059022270005060x2000x3100
WC67K-300T/600030006000500040025059022295006060x2100x3200
WC67K-400T/400040004000300040025059030275004060x2000x3100
WC67K-400T/500040005000400040025059030310005060x2000x3200
WC67K-400T/600040006000500040025059030342006060x2100x3300
WC67K-500T/400050004000300040025059037370004060x2300x3500
WC67K-500T/500050005000400040025059037380005060x2300x3500
WC67K-500T/600050006000500040032059037415006060x2300x3600
WC67K-600T/400060004000300040032059045390004060x2400x3600
WC67K-600T/500060005000400040025059037435005060x2400x3600
WC67K-600T/600060006000500040032059045470006060x2500x3700
WC67K-800T/600080006000500040032065045680006200x2600x4300


7, Accessories list or configuration:
7-1 configuration
CNC control systemMitsubishi of JapanTASK84 of Italy
Driving AC servo motor(Panasonic of Japan)AC servo motor(Panasonic of Japan)
Guide screwBall screw(PMI of Taiwan)Ball screw(PMI of Taiwan)
Guide High precision guide(domestic)Straight line guide(PMI of Taiwan), 30T High precision guide(domestic)
Gauge deviceCNC back gauge deviceCNC back gauge device
Hydraulic systemTaiwan Taiwan

7-2 accessories
No.Name Specification or model quantityremark
1CNC press brake 1 set
2Operation instruction 1 book
3Packing list 1 sheet
4Quality certificate 1 sheet
5Foot-touch switchsubassembly1 pc
6Grease gunHS87-4Q1 pc
7Sealing ring  1 bag
8Door locked key 1 set
9Switch key 1 set
10inner hexagon square spanner 1 set
11Top and bottom bending mold 1 set Installed in machine
12Front material supporting shelf 2 pc
13Back gauge  2 pc
14Hanging ring 2 pc

8, Technical index:
X axis resolution±0.1±0.1
Y axis resolution±0.02±0.02
Max speed of X axis location (m/min)1010
Max stroke of X (mm)550(100T above 750)550(100T above 750)
Slide block location accuracy (mm)±0.02±0.02

9, Price and payment term:
9-1 price:
Contact with me forwardly, there is discount price for you!

9-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

10, Delivery time:
30 days after received the 30% deposit by T/T.

11, Details of machine:



 12, Certificate:


13, Bending indication:


14, Company showing:
